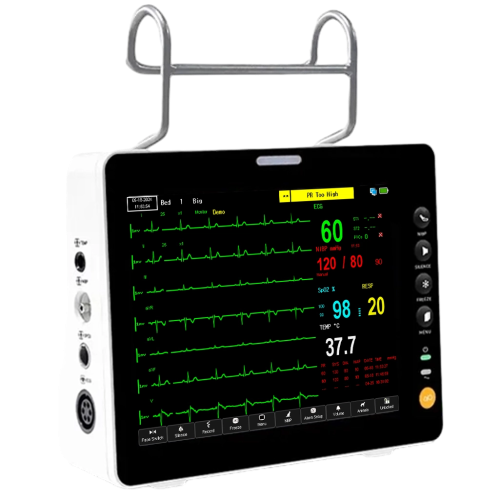

JR2000B
MAIN FEATURES
- Monitor: ECG, NIBP, SpO2, PR, TEMP, RESP, etc. Optional parameter: EtCO2.
- Optional Function: HDMI, digital printer, WIFI, wall mount and trolley.
- 8 inch TFT-LCD touch screen.
- Built-in rechargeable lithium battery, which can be used continuously for not less than 3.5 hours.
- Optional: data cloud platform and SIM card.
- Suitable for adults, children, newborns and animals.
For details, please the manual shall prevail.
SPECIFICATIONS
Parameters: ECG, NIBP, SpO2, TEMP, PR, RESP
Patient type: Adult, children, neonatal, animal
Dimensions: 212mm×173mm×75mm
Net Weight: 1.6kg (no include accessories)
ECG
Lead configuration: Standard 3-lead or 5-lead
HR
Range: Adult 15 ~ 300bpm; Neonatal/children 15 ~ 350 bpm
RESP
Measuring Method: RA-LL/RA-LA impedance
Range: 7~120 BrPM
SpO2
Measuring range: 0~100%
Resolution: 1%
Precision: Adult/children: 70~100%, ±2%; Neonatal: 70~100%, ±3%; 0%~69%: No definition
Pulse Rate
Measuring Range: 25~250bpm
Resolution: 1bpm
Precision: ±3bpm
TEMP
Applicable Temperature Probe: YSI series, CYF series
Channels quantity: 1 channel
Measurement Range: 0~50℃
NIBP
Measuring Method: Oscillographic method
Work Mode: Manual/ Auto/ Continual
Patient Monitor Main Unit: 1 unit
5-leads ECG Cable: 1 pc
SpO2 Sensor Probe: 1 pc
NIBP Extension Tube: 1 pc
Cuff (Adult): 1 pc
TEMP Probe: 1 pc
Power: 1 pc
ECG Electrode: 1 pc
Manual: 1
